BRAUSSE TB Series Folder Gluer for Micro-corrugated
& Cardboard Box

TB1450-C6 Shown

TB1450-C6 Shown

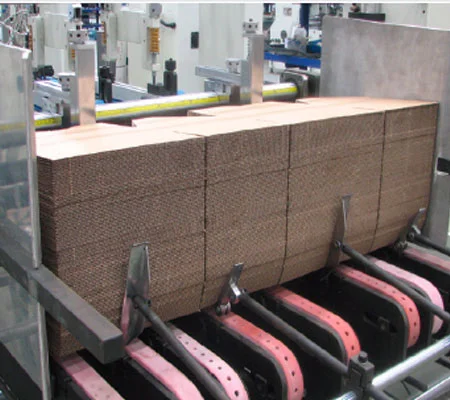

Feeder section

  • Two feeder gates for standard box, and one assist feeder gate for odd and wider boxes.

  • Vibration pile supporting bars for efficiency and stable feeding.

  • Eight individually adjustable feed belts ensure easy setup and smooth feeding.

  • Suction feeding system (optional for TB1100/TB1350 models).

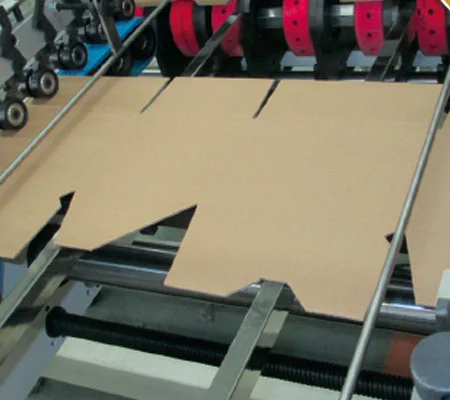

SIDE ALIGNMENT SECTION

  • Side alignment section is optional between feeder and pre-break section.



pre-breaking section

  • Three carriers throughout with split upper carriers in pre-breaking section.

  • Motorized carrier positioning system applied on whole machine as standard for TB1450 (optional for TB1100/TB1350 models).


LOCK BOTTOM SECTION

  • User-friendly & stable bottom lock system ideal for mounting.

  • Optional servo-drive system for 4 corner and 6 corner box production.



gluing

  • Standard lower glue pots on left and right side for straight line box.

  • Optional upper glue pots on left and right side for crash lock bottom box

  • Non-contact electronic gluing system is a must option for 4/6 corner box.




final fold section

  • Independent cylinder-drive upper carrier specially suited for corrugated box production.

  • Motorized carrier positioning system applied on entire machine as standard for TB1450.

  • TB1100/TB1350 allows for upgrade with motorized carrier positioning system as an option.



Trombone Section (Transfer)

  • Jam-up detector.

  • Batch counter as standard and easy set up via HMI.

  • Finger-type stopper at outlet trombone section ensures the front flap is aligned.


Delivery Section

  • Pneumatic upper carrier is adjustable vertically to obtain perfect pressure on glued boxes.

  • Extra sponge belt for positive pressing at lower area of the box shingled delivery.

  • Squaring device at entrance of Conveyor section to prevent glued box from fish tailing.


Model TB1100, TB1350 are able to fold and glue up to B-flute boxes; TB1450 able to fold and glue up to A flute boxes.

  • Independent cylinder-drive upper carrier, specially suited for corrugated production.

  • Remote control throughout entire machine for operator-friendly use and easy setup.

  • Modular design allows for upgrades in the future for more demanding jobs.

Feeder Section

  • Two feeder gates for standard box, and one assist feeder gate for odd and wider boxes.

  • Vibration system with supporting bars for efficiency and stable feeding.

  • Eight individually adjustable feed belts ensure easy setup and smooth feeding.

  • Optional suction feeding system.

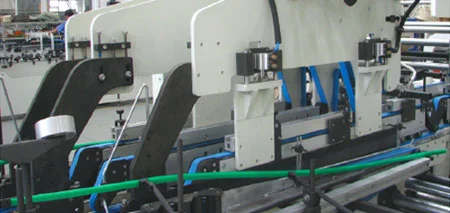

Final Folding Section

  • Independent cylinder-drive upper carrier specially suited for corrugated production.

  • Motorized carrier positioning system applied on entire machine as standard for TB1450.

  • (TB1100/TB1350 allows for upgrades with motorized carrier positioning system as an option).

Gluing System

  • Standard lower glue pots on left and right side.

  • Optional upper glue pots on left and right side.

  • Optional electronic gluing system.

Lock bottom Section

  • Optional servo-drive back fold system.

  • User-friendly & stable bottom lock system ideal for mounting.

Trombone Section

  • Box jam-up detector.

  • Batch counter as standard.

  • Pneumatic stopper at conveyor section to prevent glued box from fish tailing.

  • Stopper at trombone section ensures box lead edge squaring.

  • Conveyor compression section.

  • Pneumatic upper carrier is adjustable vertically to obtain proper pressure on glued boxes.

  • Extra sponge belt for positive pressing at lower area of the box shingled delivery.
