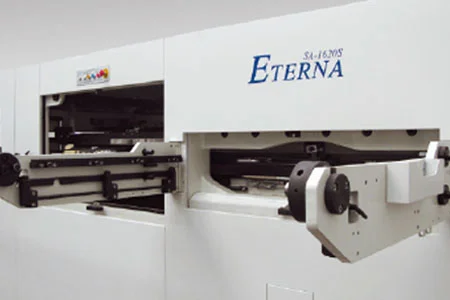

BRAUSSE SA1620S Semi-automatic Diecutting & Creasing Machine with Stripping Station



hand feed section

  • Simple and effective feeding system, short setup time resulting in higher efficiency and productivity.

  • Fork Type Lifting table built with side guide for centering position.

  • Automatic Feeder Lifting to maintain pile height for manually sheet feeding.


diecutting section

  • Safety door and die chase safety locking system to ensure safe operation.

  • Complete lost sheet control throughout the entire machine.

  • Center line system for quick change of die and short setup time.



STRIPP ING SECTION

  • Heavy duty double action stripping system to ensure positive stripping.

  • Center line system for quick stripping die setup.

  • Motorized upper frame suspending hoister.


electrical control

  • Top quality electrical components with latest PLC control technology to ensure trouble-free runs.



high pile delivery system

  • Automatic high pile delivery system.

  • Back damper, front and side joggers to ensure neat stacking.

  • Air cylinder chain tensioner and chain safety protection limit switch.



FEEDER (Hand Feeder)

  • Effective in feeding real warp corrugated board, with increased efficiency.

  • Side guide to position the pile center.

  • Feeding lift pallet.

DIECUTTING SECTION

  • Crank and worm gear toggle drive system for the lower platen.

  • Stationary high-precision upper platen.

  • Safety door and diechase safety locking system.

  • High-torque pneumatic clutch/break for positive clutch and reliable breaking.

  • Cutting pressure fine adjustment wheel with position indicator gauge.

  • Overloading protection torque limit clutch.

  • State-of-the-art 3 cam index gripper chain drive.

  • Centerline system compatible to Centerline II, centers the cutting die and stripping die quickly.

  • 7 pieces of gripper bar each with 23 spikes.

  • Sheet arrival and departure check photo sensor.

  • Left and right front lay locking blocks, separating and synchronizing adjustment available.

  • Self-diagnostic trouble display.

  • Digital speed display.

  • Automatic recycling lubrication system with oil pressure gauge and oil pressure switch.

  • Automatic main gripper drive chain lubrication.

STRIPPING SECTION

  • Centerline system (compatible to centerline II).

  • Motorized upper frame suspending hoister.

  • Centerline system with quick lock pin on upper frame.

DELIVERY

  • High pile delivery system with auto pile lifter.

  • Electronic batch counter.

  • Spring loaded adjustable chain tension back buffering wheel to maintain constant chain tension and smooth gripper bar movement.
