BRAUSSE PE2100S Automatic Flatbed Diecutting & Creasing Machine with Servo Drive Lead Edge Feeder

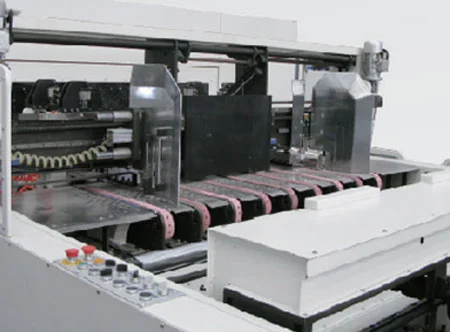

LEAD EDGE FEEDER

  • Dynamic torque servo motor-driven differential speed belt lead edge feeder with extended feeding table and side alignment

  • Imported top quality feeding belt for handling of warped corrugated board.

  • Pneumatic side push jogger (left and right side).

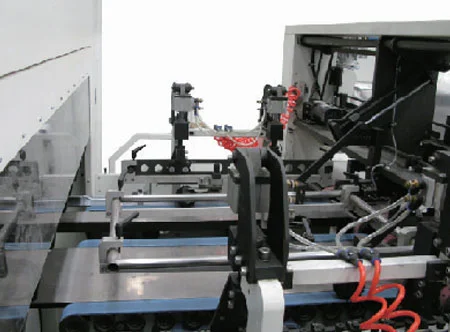

FRONT LAY & alignment guide

  • Sheet arrives at front lay with servo motor-controlled slow down action for precise registration.

  • Side alignment system to ensure the accuracy of side register.



DIECUTTING SECTION

  • 7 pieces of gripper bar with 24 spikes per piece.

  • Safety door and diechase safety locking system to ensure safe operation.

  • Complete lost sheet control throughout the entire machine.

  • Centerline system compatible to Centerline II for quick change over and short setup time.

  • Air cushion underneath diecutting plate for easy cutting plate floating in and out.


STRIPPING SECTION

  • Centerline system with quick lock pins on upper frame.

  • Centerline system compatible to Centerline II for quick stripping die setup.

  • Motorized upper frame suspending hoister up to
    500 mm.

  • Lead edge removal system to remove gripper margin completely.



DELIVERY SECTION

  • Escalator delivery with non-stop air cylinder to protect the sheets from scratches.

  • Non-stop batch counter bundle delivery to ensure continuous productivity and operation efficiency.



FEEDER

  • Dynamic torque servo motor-driven differential speed belt lead edge feeder with extended feeding table and side alignment.

  • Imported high-quality feeding belt.

  • Pneumatic side push jogger (left and right side).

  • Left and right side guides, individually adjustable and register side at choice per box layout.

  • High vacuum blower with three sections vacuum each individually, air volume adjustable controlled by inverter. The section at two sides can be shut off for running small sheets.

  • Side alignment system with left or right angle degree and pressure adjustable rollers, alignment side at choice in accordance with the printing register side.

  • Height adjustable roller brush and rubber pressing wheels on the extended feeding table for better sheet control, especially for handling warped corrugated sheet.

  • Feeding stroke adjustment setting on LCD screen.

  • Sheet arrives at front lay with servo motor-controlled slow down action for precise registration.

DIECUTTING SECTION

  • Crank and worm gear toggle drive system for the lower platen.

  • Stationary high-precision upper platen.

  • Safety door and diechase safety locking system.

  • High-torque pneumatic clutch/break for positive clutch and reliable breaking.

  • Cutting pressure fine adjustment wheel with position indicator gauge and tonnage meter.

  • Overloading protection torque limit clutch.

  • State-of-the-art 3 cam index gripper chain drive.

  • Centerline system compatible to Centerline II, centers the cutting die and stripping die quickly and precisely.

  • 7 pieces of gripper bar with 24 grippers per piece.

  • Sheet arrival and departure check photo sensor.

  • Left and right front lay locking blocks, separating and synchronizing adjustment available.

  • Self-diagnostic trouble display.

  • Digital speed display.

  • Automatic recycling lubrication system with oil pressure gauge and oil pressure switch.

  • Automatic main gripper drive chain lubrication.

  • Air cushion underneath the cutting plate for easy cutting plate floating in and out.

STRIPPING SECTION

  • Centerline system (compatible to centerline II).

  • Motorized upper frame suspending hoister.

  • Lead edge waste removal system.

  • Centerline system with quick lock pin on upper frame.

DELIVERY

  • Automatic delivery fork with non-stop air cylinder to protect the sheets from scratches.

  • The bundle delivery table can be prepared for future connection with breaker for in line operation (to be requested at order).

  • Electronic batch counter.

  • Spring-loaded adjustable chain tension back buffering wheel to maintain constant chain tension and smooth gripper bar movement.
