BRAUSSE PE1650SA ELITE II Automatic Diecutting
and Creasing Machine with Stripping Station
and Lead Edge Feeder

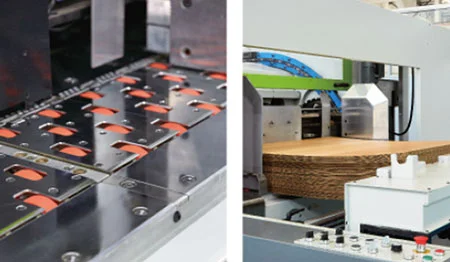

LEAD EDGE FEEDER

  • The combination of feeding technology of European diecutting machine, along with lead edge feeding features of high-speed printing machine, newly designed lead edge feeder with precise feeding system, will provide more accurate and positive feeding than ever.

  • Support plate of lead edge feeder with scratch-resistant design provides better protection for the job.

  • Rear jogger at feeder in preparation for future in line with pre-feeder in order to improve productivity and decrease labor cost (optional).

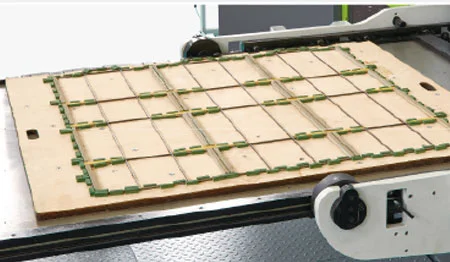

DIECUTTING SECTION

  • Specially designed for diecutting machines, this new worm gear and crank shaft mechanism drives the mobile lower platen through toggle mechanism more efficiently, reducing the main motor power by 16% and thus decreasing power consumption.

  • Diecutting station safety door and pneumatic diechase safety locking system.

  • Newly designed gripper bar parallel cam driving index unit with large motion angle allows gripper bar to start and stop gently, resulting in fewer and smaller nicks. It is also equipped with overloading protection torque limit clutch.

  • Chain guide rail uses VL compound to improve abrasive resistance and vibration resistance.

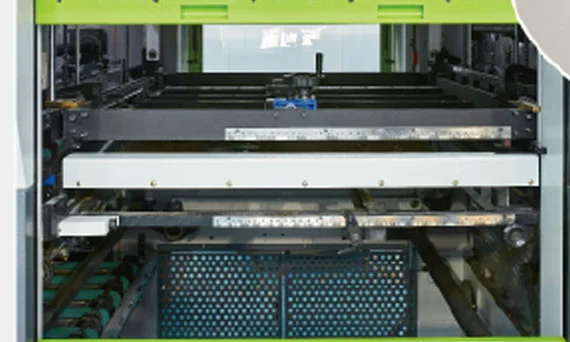

STRIPPING SECTION

  • Stationary middle stripping board, coupled with zero jerk makes a smooth upper frame motion curve with extra punch at the moment of impact to obtain cleaner waste removal.

  • Gripper bar register block at outlet of Stripping Station ensures the accuracy of stripping.

  • Centerline system for quick stripping tool setup and change over, compatible with Centerline II .

  • Front edge waste removal system removes and transfers waste edge outside the machine via conveyor belt.


DELIVERY

  • Escalator delivery fork co-operates with non-stop air cylinder for neat and positive conveying to belt table. Bundle Delivery table is ready for further connection with breaker for inline operation (to be requested at order).

  • Electrical batch counter as standard.

  • Spring-loaded adjustable chain tensioner for maintaining constant tension thus reducing stress on chains and producing smooth gripper bar movement.


LEAD EDGE FEEDER

  • The combination of feeding technology of European diecutting machine, along with lead edge feeding features of high-speed printing machine and newly designed lead edge feeder with precise feeding system, will provide more accurate and positive feeding than ever.

  • High-pressure vacuum blower with silencer and AC inverter control volume adjustment, vacuum suction area adjustable according to sheet size.

  • Rear jogger at feeder in preparation for future in line with prefeeder in order to improve productivity and decrease labor cost (optional).

  • Pneumatic side push guide plates (left and right sides).

  • Left and right hand side guides with separating and synchronizing adjustment available. Inclined front guide plate with back and forth, up and down micro-adjustments to reduce the pressure on bottom sheet of the pile to ensure smooth feeding.

  • Sheet feeding grid height adjustable according to sheet quality and thickness for smooth and precise feeding.

DIECUTTING SECTION

  • Specially designed for diecutting machines, this new worm gear and crank shaft mechanism drives the mobile lower platen through toggle mechanism more efficiently, reducing the main motor power by 16% and thus decreasing power consumption.

  • Newly designed mobile platen with optimized structural mechanics, more accurate and with minimal deformation under pressure, thus reducing the make ready time.

  • Diecutting station safety door and pneumatic diechase safety locking system.

  • High-torque pneumatic clutch/break for positive clutch and reliable breaking, and special air inlet system to control the air volume for smooth machine start and stop.

  • Air cushion underneath the cutting plate for easy cutting plate in and out.

  • Motorized impression on/off and pressure adjustment with digital mobile platen position and tonnage display.

  • High-quality precision worm gear and toggle system.

  • Newly designed gripper bar driving index unit with large motion angle allows gripper bar to gently start and stop, resulting in fewer and smaller nicks. It is also equipped with overloading protection torque limit clutch.

  • High quality, imported pre-stretched gripper bar driving chain.

  • Centerline system compatible to Centerline II, centers the cutting die and stripping die quickly and precisely.

  • 8 high quality precision alloy gripper bars, each with 12 specially hardened grippers to ensure firm grab of the sheet at high speed.

  • Sheet arrival and departure check photo sensor connected with overall stock monitoring system.

  • Left and right front lay locking blocks with individual adjustments.

  • Chain guide rail uses VL compound to improve abrasive resistance and vibration resistance.

  • 10.4’ color touch screen operation panel gives total control of the machine and graphic display machine parameters, job setting, fault diagnosis and more. Direct and operator-friendly.

  • Automatic force lubrication system recycles fluid and is equipped with oil pressure gauge and alarm.

  • Automatic independent main gripper drive chain lubrication.

STRIPPING SECTION

  • Stationary middle stripping board coupled with special upper stripping frame movement curve in order to produce extra force at waste nipping point, ensuring clean waste stripping.

  • Gripper bar register finger at stripping outlet ensures the accuracy of stripping.

  • Centerline system for quick stripping die setup and change over, compatible with Centerline II.

  • Push button of gripper opening is added for easy removal of the production sample at stripping station.

  • Motorized upper stripping frame increases the operation space, more operator-friendly.

  • Optional triple action stripping with lower stripping frame and spring-loaded pin for precision fine waste piece stripping.

  • Lead edge waste removal system removes and carries waste edge outside the machine.

  • Full stripping with/without lead edge waste stripping convertible by one button, no tool change, more operator-friendly and safe to use.

  • Front edge waste stripping tool with longer stroke and superior curve of motion eases the stripping action.

  • Gravity pull type safety door for easy and safe operator in and out.

DELIVERY

  • Escalator delivery fork with non-stop air cylinder for neat and positive delivery and conveyor belt delivery table to protect the sheets from scratches.

  • The bundle delivery table can be prepared for future connection with breaker for in line operation (to be requested at order).

  • Electrical batch counter.

  • Spring-loaded adjustable chain tension back buffering wheel to maintain constant chain tension and smooth gripper bar movements.

  • Mechanical cam driven side joggers and shutter (banana bar), with motorized position adjustment, more accurate and suitable for multi-cut diecutting.
