BRAUSSE 1450SE Automatic Flatbed Diecutting
& Creasing Machine with Stripping Station



Feeder

  • Four pick up and four forward-suck heads with angle adjustment for wide range of stock.

  • New belt swing feeding rollers ensure smooth feeding even with warped corrugated board.

  • Motorized movement of feeder pile table during production.

  • Fine air blast at lead edge for smooth thin paper transport.

  • Non-stop feeder with automatic pile lift.


feeding table & sheet registration

  • Electrical double sheet detector.

  • Side lays on both sides, push and pull convertible depending on stock.

  • Sheet slow down device to ensure accurate position of the sheet arrival at front lays.

  • Special regulator to adjust sheet arrival timing at front lays while machine is running.



die cutting section

  • Accurate mobile platen position and pressure tonnage digital display for easy operation.

  • Overloading safety device to limit maximum operating pressure at 300 tons.

  • Four front lay stoppers each individually adjustable for a wide range of stock.

  • Gripper bar with individual position adjustment ensures precise sheet registration.

  • Pneumatic locking die chase frame.

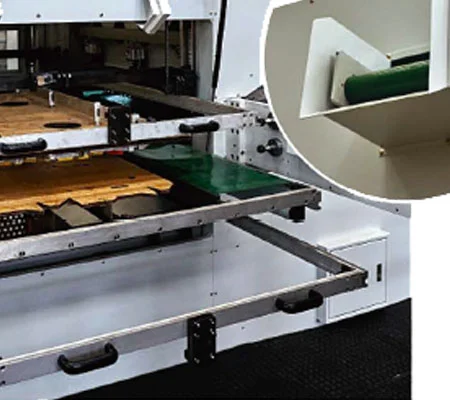

stripping section

  • Triple action stripping system to ensure clean and positive waste stripping.

  • Upper and lower stripping tool mounting frame can be pulled out for job setup and make ready.

  • 300mm upper stripping frame raiser greatly enhances the operation space, more operator-friendly.



delivery section

  • Automatic high pile delivery system.

  • Non-stop auxiliary delivery curtain for continuous production resulting in greater productivity.

  • Electrical batch counter and tape inserter come as standard.

  • Gripper edge removal system with transport belt to remove the gripper edge sideways to the drive side.

  • Blowing device to press down the sheets by means of adjustable bars.



Feeder

  • Pre-loading device mounted at the front of the feeder.

  • Non-stop feeder with automatic pile lift.

  • Suction head with several adjustment possibilities to handle different kind of materials.

  • Two turbo blowers for positive separation of thin paper.

  • Motorized side adjustment of pallet table.

  • Pile adjustment during production.

  • Electrical double sheet control.

  • Fine air blast at lead edge for smooth thin paper transport.

  • Sheet slow down device of feeder belts to ensure accurate position of the sheet to the front lays.

  • Synchronizing device to adjust the sheet positioning to the front lay by hand during production.

  • Side lays on both sides adjustable for push and pull.

  • Electronic side lay control.

  • Four separate adjustable front lays with clock read-out system. Operation outside of the machine.

  • Two electronic front lay controls by means of Omron fibre optic sensors.

  • Safety device for lowering of pallet carrier.

Die cutting section

  • Indication of die cutting pressure by means of digital read-out device.

  • Cam driven gripper opener at diecutting section entrance.

  • Pneumatic system for locking the die chase frame.

  • Motorized pressure adjustment system.

  • Torque limit safety clutch for main chain drive.

  • Air blowing device for stabilizing thin paper after arrival in the die section.

Stripping section

  • Triple action movement of the upper and lower stripping tools.

  • Movement of the upper chase can be switched on and off electrically.

  • By means of remote control under the stripping device the upper chase can be moved up and down electrically to ensure a simple adjustment of the lower pins.

  • The under stripping movement can be switched off mechanically.

Delivery

  • Automatic non-stop delivery with curtain. This curtain moves into the delivery to catch the stripped sheets during the exchange of the piles.

  • Blowing device to press down the sheets by means of adjustable bars.

  • Back and side joggers adjustable.

  • Gripper edge removal system with transport belt to remove the gripper edge sideways to the drive side.

  • Tape inserter with counter.

  • Safety device on lowering of the steel plate.
