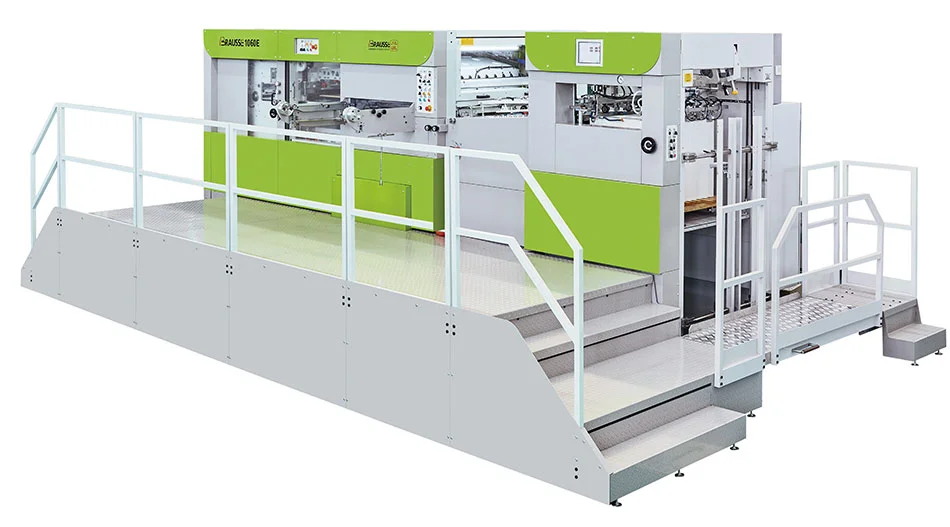

BRAUSSE 1060E Automatic Flatbed Diecutting & Creasing Machine with Stripping Station



Feeder

  • Based on group standard technical platform, the feeder is precise, stable, reliable and smooth to feed sheets from 90g paper to thin corrugated board.


ultrasonic double sheet detector

  • The ultrasonic double sheet detector has no contact with sheet, precise and easy to adjust, which can reduce marking of printed surface.



special alloy gripper

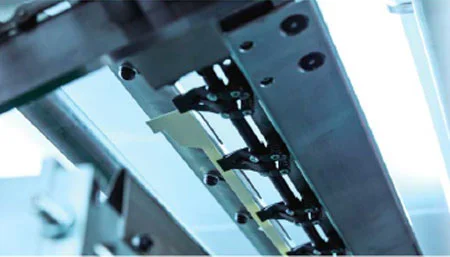

  • 7 gripper bars made from cutting-edge Brausse Group technology adopt the unique design of large motion angle eccentric worm gear drive system, run smoothly, and allow minimum number and size of nicks at maximum production speed.

  • The safety gripper chain lock will lock the driving chain automatically when the machine stops. It can prevent the gripper bars from running even during electrical default, ensuring operator safety.


diecutting station

  • 15mm synthetic supporting plate with +/- 0.9mm micro adjustment for quick setup and make ready.

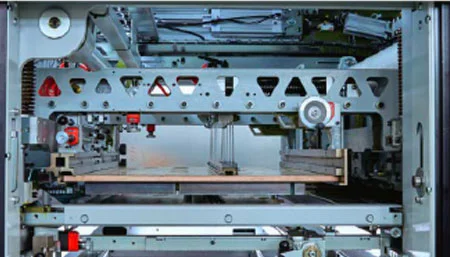

stripping station

  • Quick tooling changeover thanks to Group standard technology, which enhances productivity.

  • Upper, middle, and lower stripping frame with central locking system allows for quick setup and easy adjustment.

  • Funnel-shaped gripper edge removal system.


delivery station

  • Automatic non-stop delivery system improves productivity and is easy to operate.

  • Apron-style auxiliary platform is suitable for all jobs especially for multi-ups of all size jobs.

  • Sheet-stretching air blower and sheet tail pressing down brush bar to stabilize the finished products at delivery.

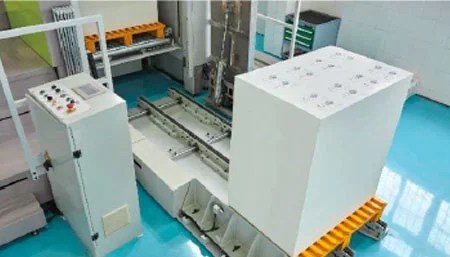

AUTOMATIC PILE TRANSFER SYSTEM (OPTIONAL)

  • Can achieve the automatic feeding, automatic empty, pallet evacuation, automatic empty pallet introduction, and automatic pile exit at delivery.

  • Convenient for operation, intelligent and efficient in production.

  • Can be connected with an automated system, and integrate with overall control and operation.


FEEDER

  • Three pick up and four forward-suck heads with angle adjustment.

  • Pre-loading device with rail cart and scaled gate.

  •  Manual side adjustment of pallet table (+/- 40 mm).

  • Non-stop feeder with automatic pile lift.

  • Side blowers adjustable according to sheet size for smooth feeding.

FEED TABLE

  • Four front lay with dial read out at the operation side, and adjustable in pair.

  •  Pull and push convertible side lay (OS and OOS) with photo sensor sheet arrival control.

  • Two modes of double sheet detector, ultrasonic or mechanical type alternative on stock range.

  •  Ultrasonic type for paper and cardboard,  mechanical for flute corrugated board.

 DIECUTTING SECTION

  • Precision worm gear crank toggle driving system to ensure smooth and dynamic lower platen movement.

  • Short stroke movable platen, driven by eccentric worm gear and toggle mechanism allows large motion angle resulting in minimum number and size of nicks at maximum production speed.

  • Precision stationery upper platen.

  • State-of-art 3 cam index gripper bar drive system to ensure smooth and precise gripper bar intermittent movement.

  •  Pneumatic clutch/brake for main drive system.

  • Motorized cutting force setting by push button.

  •  Digital strain gauge die cutting pressure tonnage display at HMI with adjustable pressure limit protection.

  • Seven high-precision alloy gripper bar.

  •  High quality pre-stretched gripper bar drive chain.

  • Torque limit safety clutch to protect the index drive system in case of gripper bar crash.

  • Double cam driven gripper opener and front lay swing frame without position restore spring for smooth and accurate sheet register and take off.

  • Pneumatic push button die chase locking mechanism to ensure safe and operator-friendly changing of the die.

  • 5mm hardened cutting plate or 4+1mm sandwich plate (optional) on top of 15mm precision synthetic supporting plate with +/-0.9mm micro adjustment for quick setup and make ready.

  •  Automatic main chain greasing system.

 STRIPPING SECTION

  • Complete set of stripping tools with upper and lower stripping pins.

  • Centerline system for quick stripping die setup.

  • Integrated Quick Locking System.

  • Automatic quick locking device for the upper tool integrated in the machine.

  • Funnel for waste guidance.

  • Efficient and smooth cam running curve drives the stripping tooling with large motion angle to ensure clean and tiny stripping at speed.

  • Pneumatic quick-lifting device for upper frame.

 DELIVERY SECTION

  • Automatic delivery with non-stop curtain. This curtain moves into the delivery to catch the arriving sheets during the pile exchange.

  • Five section brush brake, each section is individually adjustable.

  • Air blower to press down the sheets.

  • Rear and side joggers with easy position adjustment.

  • Safety device to prevent the steel pile plate from clamping on the foot when it reaches at ground level.
