BRAUSSE 1050SE Automatic Flatbed Diecutting & Creasing Machine with Stripping Station

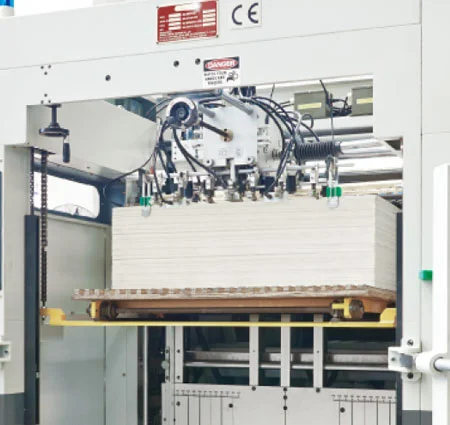

Feeder

  • Preloading system with either preloading rail cart or pallet jack to reduce down time.

  • Non-stop feeder with automatic pile lift.

  • Four pick up and four forward suction heads with angle adjustment.

  • Patented turbo spiral air blower for smooth sheet transport.


FEEDING TABLE AND SHEET REGISTRATION SYSTEM

  • Slanted Feed Table to obtain stable and accurate registration especially for lightweight paper at high speed.

  • Side lays on both left and right hand sides push and pull convertible.

  • Sheet slow down device of feeding belts with selective on/off switch to ensure accurate registration of the sheet at front lays.

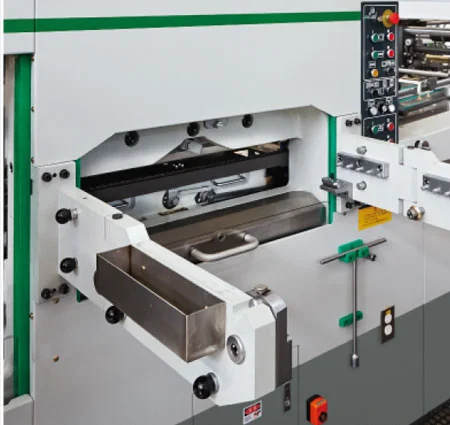

Die cutting Section

  • Pneumatic push button diechase locking mechanism to ensure safe and operator-friendly job change.

  • Gripper bar driving chain tension wheel to keep the tension constant.

  • Digital cutting pressure tonnage display with maximum pressure limit protection.

  • Seven high-precision alloy gripper bars. State-of-art 3 cam index gripper bar driving system to ensure smooth
    and precise gripper bar intermittent movement.

  • Air blasting nozzle bar for stretching lightweight paper.

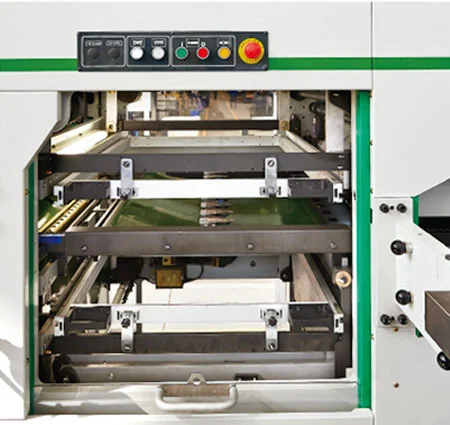

stripping section

  • Triple action movement of the upper and lower strip­ping frames with lower spring loaded stripping pins.

  • Upper and lower stripping tool mounting frame can be pulled out for job setup.

  • Gripper edge removal system as standard.

  • Motorized upper frame suspending hoister.

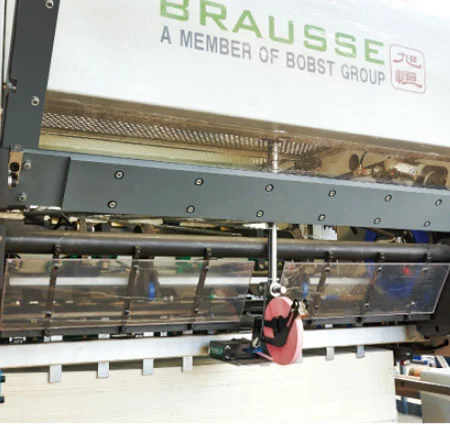

DELIVERY SECTION

  • Non-stop delivery with automatic slow down, designed with safety device.

  • Sheet-stretching air blower and sheet tail pressing down brush bar.

  • Rear and side joggers with easy position adjustments.

  • Counter with tape inserter as standard.



Feeder

  • Patent turbo spiral air blower pressing foot at feeder head.

  • Four pick up and four forward suck heads with angle adjustment.

  • Preloading device with rail cart and scaled gate.

  • Non-stop feeder with automatic pile lift.

  • Left and right side turbo air blower.

  • Motorized side adjustment of pallet table.

  • Electrical double sheet control.

  • Fine air blast at lead edge for smooth thin paper transport.

  • Sheet slow down device of feeder belts to ensure accurate position of the sheet to the front lays with selective on/off switch.

  • Synchronizing device to adjust the sheet positioning to the front lay by hand during production.

  • Bullet catcher on the feeder entrance.

  • Side lays on both sides push and pull convertible.

  • Electronic side lay control to check the sheet position.

  • Four individually adjustable front lays with dial read out at the operation side of the machine.

  • Two electronic front lay controls by means of Omron Glasfiber optik to control the sheet arrival.

  • Photo sensor safety barrier at pallet table floor level touching point.

Die cutting Section

  • Precision worm gear crank toggle driving system to ensure smooth and dynamic lower platen movement.

  • Precision stationery upper platen.

  • Sandwich hardened cutting plate.

  • Pneumatic push button diechase locking mechanism to ensure safe and operator-friendly changing of the die.

  • Pneumatic clutch/brake for main drive system.

  • Servo motor drive impression on/off by button.

  • Digital diecutting pressure tonnage display with maximum pressure limit protection.

  • Seven high-precision alloy gripper bar.

  • High quality pre-stretched gripper bar driving chain.

  • State-of-art 3 cam index gripper bar driving system to ensure smooth and precise gripper bar intermittent movement.

  • Torque limit safety clutch to protect the index driving system in case of gripper bar crash.

  • Double cam driven gripper opener and front lay swing frame without position restore spring for smooth and accurate sheet register and take off.

  • Air blasting nozzle bar for stretching the thin paper before die cutting.

Stripping Section

  • Triple action movement of the upper and lower stripping frames with lower spring loaded stripping pins.

  • Motorized upper frame suspending hoister.

  • Upper and lower stripping tool mounting frame can be pulled out for job setup and make ready.

  • Remote control operation panel for jogging the upper frame up and down, easy and safe stripping tool setup and alignment.

  • Quick stripping tool exchange device (optional).

  • Mechanical disconnecting of lower stripping frame when it is not in use.

Delivery Section

  • Automatic delivery with non-stop curtain. The curtain moves into the delivery to catch the arriving sheets during the pile exchange.

  • Five section brush brake each section angle adjustable individually.

  • Air blower to press down the sheets.

  • Rear and side joggers with easy position adjustment.

  • Gripper edge stripping and removing system with conveyor belt to remove the gripper edge waste sideways to the drive side.

  • Tape inserter with counter.

  • Safety device to prevent the steel pile plate from clamping on the foot when it reaches at ground level.
